Electronic Martindale Abrasion Tester with 4, 6 or 9 Working Positions and 220V 50Hz Power Supply

大画像 : Electronic Martindale Abrasion Tester with 4, 6 or 9 Working Positions and 220V 50Hz Power Supply

商品の詳細:

起源の場所:	中国広州
ブランド名:	LIYI

お支払配送条件:

最小注文数量:	1

連絡先

Electronic Martindale Abrasion Tester with 4, 6 or 9 Working Positions and 220V 50Hz Power Supply

説明

作業ポジション:	4、6、9	表示計算:	0~99999回
研磨速度:	50±2r/min	プレス重量:	2385±10g
電源:	220V 50Hz	モデル:	LY-FZM11
最大動力範囲:	24±0.5mm, 60.5±0.5mm	握り機の重量:	200±1g
生地サンプル重量:	395±2g	家具のサンプル重量:	594±2g
ステンレス鋼分銅:	260±1g	フリクションヘッド径A:	28.8-0.084mm
フリクションヘッド径B:	90-0.10mm	寸法:	885mm×600mm×410mm
重さ:	150kg
ハイライト:	Electronic Martindale Abrasion Tester , 4 , 6 or 9 Working Positions Martindale Abrasion Tester , 220V 50Hz Power Supply Martindale Abrasion Tester

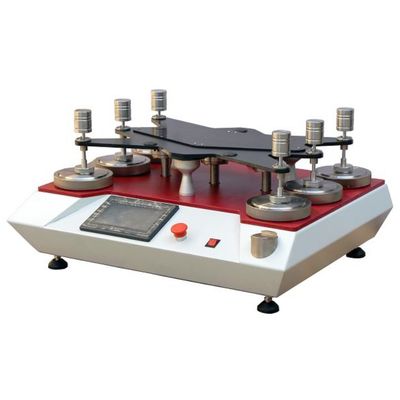

Liyi Textile Martindale Abrasion Tester/Pilling Resistance Instrument

The Liyi Textile Martindale Abrasion Tester is a precision instrument designed for evaluating fabric pilling and abrasion resistance. It applies circular fabric specimens under specified pressure against standard abrasive material following Lissajous trajectory patterns to determine wear characteristics.

Key Features

Evaluates pilling degree and fabric wear resistance
Compliant with GB/T13775, ASTM D4966, ISO12947 standards
Features touch display screen with intuitive interface
Simultaneous 8-station testing capability
Dual counting methods for accurate measurements
Two Lissajous trajectory patterns (24mm × 24mm and 60.5mm × 60.5mm)
Multiple trajectory matching accessories included

Technical Specifications

Model	LY-FZM11
Station Number	4, 6, 9 station options
Count Display	Estimated counting: 0-999,999 times Total counting: 0-999,999 times
Maximum Dynamic Range	24±0.5mm, 60.5±0.5mm

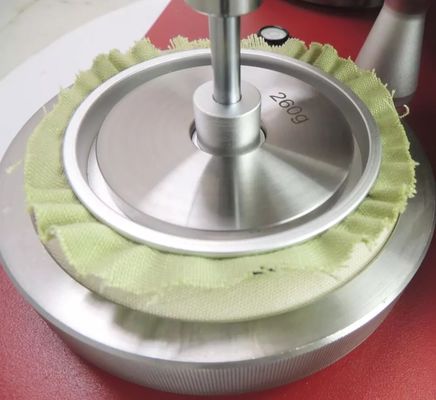

Pressure Weights	Gripper: 200±1g Cloth samples hammer: 395±2g Furniture accessories sample hammer: 594±2g Stainless steel butterfly piece: 260±1g
Effective Friction Diameter	A type: 200g (1.96N) friction head Ø28.8-0.084mm B type: 155g (1.52N) friction head Ø90-0.10mm
Relative Velocity	50-2r/min
Pressure Hammer Weight	2385±10g
Dimensions	885mm × 600mm × 410mm (L×W×H)
Weight	150kg
Power	AC220V, 50Hz

Product Images

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.

Frequently Asked Questions

Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty period and offer technical support via email or video chat, with solutions typically provided within 24-48 hours.

What's the delivery time?

Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to customer requirements, including OEM services with your logo on the equipment.

How do I install and use the machine?

Most machines are shipped fully assembled. We provide English operation videos via email, and only require power connection to begin use. For complex installations, we can provide on-site assistance if necessary.
