Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

認証
中国 Dongguan Liyi Environmental Technology Co., Ltd. 認証
中国 Dongguan Liyi Environmental Technology Co., Ltd. 認証
顧客の検討
私達は機械を昨日受け取ってしまいました!それはあなたと働くことは大きかったです! 付属品ではあなたおよびyouкの主任、それのためのお礼状は私のCEOによって署名されました。

—— Барабан Григорий

私達は glossmeter でよい一見がありました及び私達が見るものを私達は好みます。 結果は指定の口径測定の近くに立派にあります。 私達はそれを愛します。

—— デーブの醸造業者

私達は機械を受け取りました、この時間の間に私と忍耐強いをありがとう、私は使用をそれまだ持っていませんが、良いことを確かめます。

—— ホセ Zikasky

私はあなたのあカスタマー サービス、すぐに応答および思慮深いをいつも愛します。 時間通りに渡される機械。 ありがとう。

—— Elizebath ロバーツ

オンラインです

Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester
Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

大画像 :  Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

商品の詳細:
起源の場所: 中国広州
ブランド名: LIYI
モデル番号: 利怡
お支払配送条件:
最小注文数量: 1

Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester

説明
力容量: 最大500kg 正確さ: ±0.5%
モータータイプ: 松下電器産業のsevorモーター 脳卒中: 850のmm
解決: 1/250,000 1/150,000 電源: 1PH、AC220V、50/60Hz
テスト速度範囲: 0.1~500mm/分 力の相対誤差: ±0.5%
オプションのロードセル: 1,2,5,10,20,50,100,200,500kg 操作システム: コンピューターWindowsシステム
テスト結果出力: コンピューターからの出力 最大負荷容量: 500kg
精度クラス: 0.5 テスト速度範囲: 50~500mm/分
モーター: ACインバーター モーター
ハイライト:

Max 500kg Universal Testing Machine

,

±0.5% Accuracy Tensile Tester

,

850mm Stroke Material Testing Machine

Liyi Computerized Electronic Universal Testing Machine Tensometer
Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 0
Product Overview

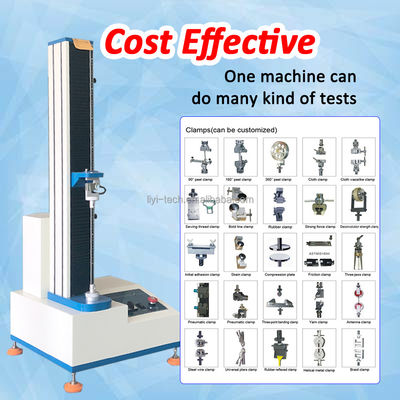

The Liyi universal testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack, and fatigue cycling tests on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board, and finished products.
Design Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Technical Specifications

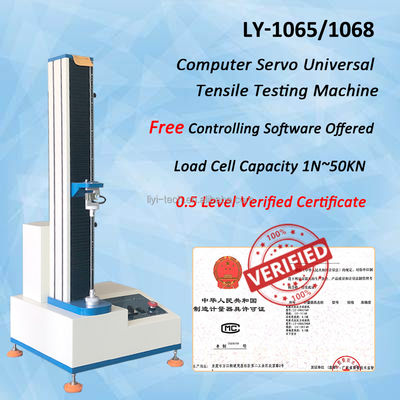

Model LY-1065 LY-1068
Accuracy Class 0.5 0.5
Max Load Capacity 500KG
Optional Load Cell 1,2,5,10,20,50,100,200,500kg
Resolution 1/250,000 1/150,000
Force Relative Error ±0.5% ±0.5%
Test Speed Range 0.1~500mm/min 50~500mm/min
Motor Panasonic Servo Motor AC Inverter Motor
Test Stroke (Contain Clamps) 850mm
Product Images
Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 1 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 2 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 3 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 4 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 5 Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 6
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and a perfect after-sales service system.
Our production base is located in Dongguan, Guangdong province, China. In 2005, we established an office in Kunshan, Jiangsu province to better serve customers in Eastern China. Liyi serves customers from more than 150 countries and regions, collaborating with dealers worldwide to offer superior service.
Computerized Universal Testing Machine with Max 500kg Force Capacity ±0.5% Accuracy and 850mm Stroke Digital Tensile Tester 7
Frequently Asked Questions
1. Are you the manufacturer? Do you offer after-sales service? What is the warranty policy?
Yes, we are one of the largest professional manufacturers of testing equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation time. If your machine encounters issues, you can contact us via email or phone, and we will provide solutions within 24 to 48 hours.
2. What is the delivery time?
For standard machines in stock, delivery is immediate. For out-of-stock standard machines, delivery typically takes 15-20 working days after deposit receipt. We can make special arrangements for urgent orders.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements. We can also place your logo on the equipment (OEM/ODM service).
4. How do I install and use the machine?
We provide English operation videos via email after purchase. Most machines are shipped fully assembled - you only need to connect the power cable to begin use. If necessary, we can assist with on-site installation.
