力容量: | 最大500kg | 正確さ: | ±0.5% |
---|---|---|---|
モーター: | パナソニックサーボモーター | 脳卒中: | 850のmm (カスタマイズすることができる) |
解決: | 1/250,000 | 寸法: | 58x58x145cm |
力: | 1PH、AC220V、50/60Hz | テスト速度: | 0.5〜1000mm/min |
テスト範囲: | 400mm MAX | 重さ: | 90kg |
操作方法: | コンピューター制御 | 操作システム: | TM2101 |
電源: | 220V/50HZか110V/60HZ | 容量オプション: | 5,10,20,50,100,200,500,1000,2000,5000kgオプション |
標準的な打撃: | 800mm (ない据え付け品を含んで) | ||
ハイライト: | 5KN-100KN Capacity Universal Testing Machine,±0.5% Accuracy Tensile Testing Machine,850mm Stroke Material Testing Equipment |
Capacity | 5,10,20,50,100,200,500,1000,2000,5000KG (optional) |
---|---|
Stroke | 800mm (not including fixture) |
Test Speed | 0.5~1000mm/min (keyboard controlled) |
Test Range | 400mm MAX |
Dimension | 80×50×150CM |
Weight | 90kg |

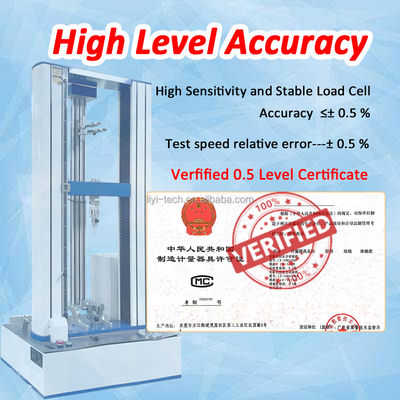

Accuracy | ±0.5% or better |
Operation Method | Computer control |
Resolution | 1/250,000 |
Motor | Panasonic servo motor |
Operation System | TM2101 |

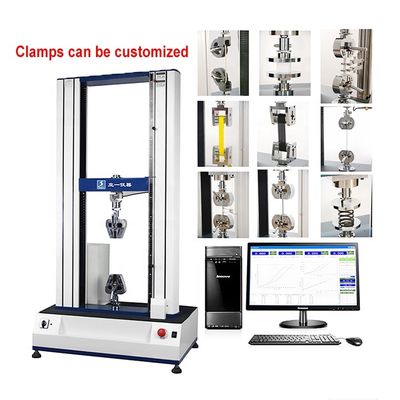

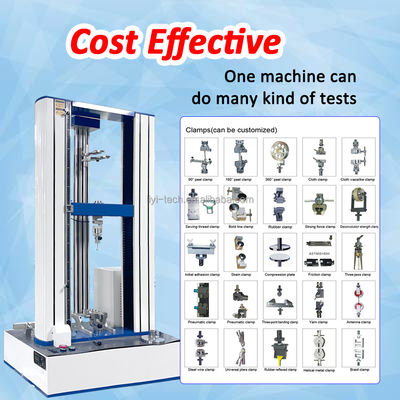

Accessories | Customized clamps, force sensors, printer, operation manual |
Power | 220V/50HZ or 110V/60HZ |
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a complete quality management system, we serve customers worldwide.
Our product range includes simulated environmental testers, plastic and rubber testers, and other material testing equipment. Based in Dongguan, Guangdong province (China's manufacturing center), we also maintain an office in Kunshan, Jiangsu province to better serve Eastern China customers.
We serve customers from over 150 countries and regions, working with international dealers to provide comprehensive testing solutions. Our mission is to help customers establish quality testing labs to ensure product reliability.
