| 力容量: | 最大500kg | 正確さ: | ±0.5％ |
|---|---|---|---|
| モータータイプ: | 松下電器産業のsevorモーター | 脳卒中: | 850のmm |
| 解決: | 1/250,000 1/150,000 | 電源: | 1PH、AC220V、50/60Hz |
| テスト速度: | 0.1~500mm/分 | 荷重計: | 1,2,5,10,20,50,100,200,500kg |
| 力の間違い: | ±0.5％ | 操作システム: | コンピューターWindowsシステム |
| テスト出力: | コンピューターからの出力 | 最大負荷: | 500kg |
| 速度範囲: | 50～500mm/分 | モーター選択: | ACインバーター モーター |
| テストストローク: | 850mm | ||
| ハイライト: | Computerized Universal Testing Machine 500kg,Universal Testing Machine tensile tester,500kg capacity tensile testing machine |
||
| Attribute | Value |
|---|---|
| Operation | Computer Windows system |
| Test Result | Output from computer |
| Force Capacity | Max 500kg |
| Accuracy | ±0.5% |
| Motor | Panasonic servo motor |
| Stroke | 850 mm (can be customized) |
| Resolution | 1/250,000 - 1/150,000 |
| Power | 1PH, AC220V, 50/60Hz, Electronic |
| Warranty | 12 months |

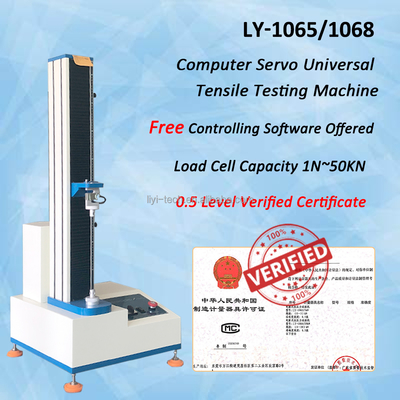

| Specification | LY-1065 | LY-1068 |
|---|---|---|
| Accuracy Class | 0.5 | 0.5 |
| Optional Load Cell | 1,2,5,10,20,50,100,200,500kg | |
| Resolution | 1/250,000 | 1/150,000 |
| Force Relative Error | ±0.5% | ±0.5% |
| Test Speed Range | 0.1~500mm/min | 50~500mm/min |
| Motor | Panasonic Servo Motor | AC Inverter Motor |

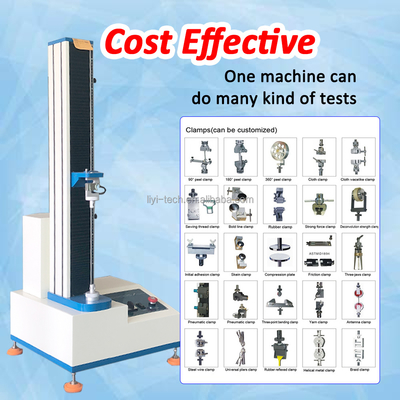

The Liyi universal testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling tests on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board and finished products.
Design Standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries from our manufacturing base in Dongguan, Guangdong, with additional offices in Kunshan, Jiangsu for Eastern China operations.
Our product range includes simulated environmental testers, plastic and rubber testers, and various material testing equipment. We are committed to innovation, international standards compliance, and helping customers establish quality testing laboratories.
