| 最大負荷: | 300kn、600kn、1000kn、2000kn | テスト範囲: | 6kn-300kn、12kn-600kn、20kn-1000kn、40kn-200kn |
|---|---|---|---|
| テスト力の精度: | ±1％ | 変位解像度: | 0.01mm |
| 変形テスト正確さ: | ±0.5％ | 最大描画スペース: | 800mm、850mm |
| 最大圧縮スペース: | 700mm | 平らなサンプルクランプの厚さ: | 0-15mm、0-40mm、0-60mm |
| 丸いサンプルクランプ直径: | φ6-φ26mm、φ13-φ40mm、φ13-φ60mm、φ13-φ70mm | 折り曲げ試験の枝スペース: | 450mm |
| 枝幅: | 140mm | 枝直径: | 30mm |
| ピストンストローク: | 250mm | クランプ方法: | 作り付け油圧クランプ |
| 外の次元: | 990×600×2435mm、990×600×2453mm、1100×770×2490mm、1160×1100×2600mm | 完全な重量: | 2800kg、3000kg、4700kg、6500kg |
| ハイライト: | Hydraulic Universal Testing Machine 100kN,Universal Testing Machine for tensile strength,1000kN hydraulic testing machine |
||
| Attribute | Value |
|---|---|
| Warranty | 1 YEAR |
| Customized Support | OEM, ODM, OBM |
| Power | Electronic |
| Test Force Accuracy | ±1% |
| Displacement Resolution | 0.01mm |
| Deformation Test Accuracy | ±0.5% |
| Max Drawing Space | 800mm |
| Piston Stroke | 250mm |
| Weight | 6500kg |

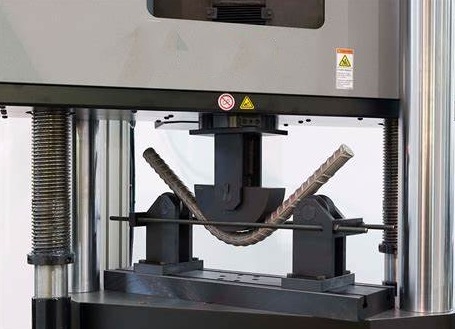

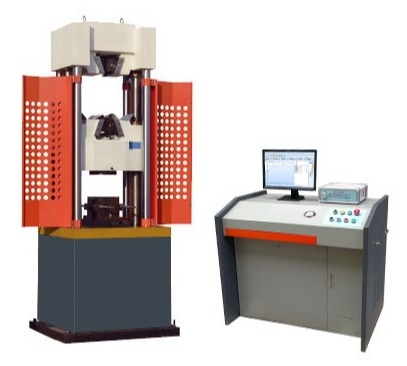

The Liyi hydraulic universal testing machine is designed for tension, compression, bending, and shear testing of metal materials. With additional accessories, it can perform various mechanical performance tests.
| Model | LYH-300D | LYH-600D | LYH-1000D | LYH-2000D |
|---|---|---|---|---|
| Max Load (kN) | 300 | 600 | 1000 | 2000 |
| Test Range | 6KN-300kN | 12KN-600kN | 20KN-1000kN | 40KN-2000kN |
| Max Drawing Space | 800mm | 800mm | 850mm | 800mm |
| Max Compressing Space | 700mm | 700mm | 700mm | 700mm |
| Complete Weight | 2800kg | 3000kg | 4700kg | 6500kg |
Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty (extendable to 14 months for overseas shipments). We provide free maintenance during warranty period and offer technical support via email or video call with solutions typically provided within 24-48 hours.
Standard machines are typically available for immediate shipment. For out-of-stock items, delivery time is 15-20 working days after deposit. Rush orders can be accommodated with special arrangements.
Yes, we provide OEM and ODM services including custom machine configurations and branding with your logo.
Most machines ship fully assembled - just connect power to begin operation. We provide English operation videos and can assist with on-site installation if needed.
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech enterprise specializing in environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries from our manufacturing base in Dongguan, Guangdong, with additional offices in Kunshan, Jiangsu for Eastern China support.
Our product range includes environmental test chambers, universal tensile testers, UV aging chambers, industrial furnaces, and material testing equipment. We combine international standards with customer-specific requirements to deliver quality testing solutions.
