| 力: | 750W | 正確さ: | ±0.5％、0.5％ |
|---|---|---|---|
| 電圧: | 220V、380V、240V、110V | 保護クラス: | IP56 |
| 容量: | 50kn | テスト速度: | 0.01-500 mm/min |
| 最大ストレッチストローク: | 600mm | テスト力の範囲: | 2% - 100% |
| 変位精度: | > 0.01 Mm | 電源: | 220V 50Hz |
| 重さ: | 470KG | 最大負荷容量: | 5000kg |
| 解決: | 1/250,000 | 力の相対誤差: | ±0.5％ |
| テストストローク: | 1200mm | ||
| ハイライト: | 50KN universal testing machine,universal testing machine for tensile strength,universal testing machine with compressive strength |
||
| Attribute | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Power | 750W |
| Accuracy | ±0.5%, 0.5% |
| Voltage | 220V, 380V, 240V, 110V |
| Type | Testing machine |
| Protection Class | IP56 |
| Capacity | 50KN |
| Test Speed | 0.01-500 mm/min |
| Max Stretch Stroke | 600mm |
| Test Force Measuring Range | 2% - 100% |
| Displacement Measurement Accuracy | > 0.01 mm |
| Power Supply | 220V 50Hz |
| Weight | 470Kg |

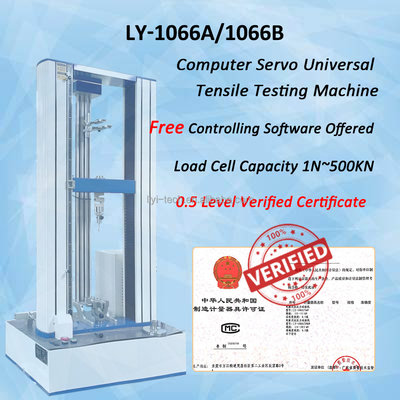

| Model | LY-1066A | LY-1066B |
|---|---|---|

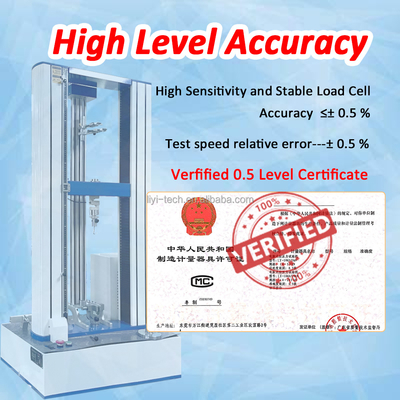

| Accuracy Class | 0.5 (with Verified Certificate) | |
| Optional Load Cell | 1,2,5,10,20,50,100,200,500,1000,2000,5000kg | |
| Max Load Capacity | 5000KG | 2000KG |
| Resolution | 1/250,000 | 1/150,000 |
| Force Relative Error | ±0.5% | |
| Test Speed Range | 0.1~500mm/min | 50~500mm/min |

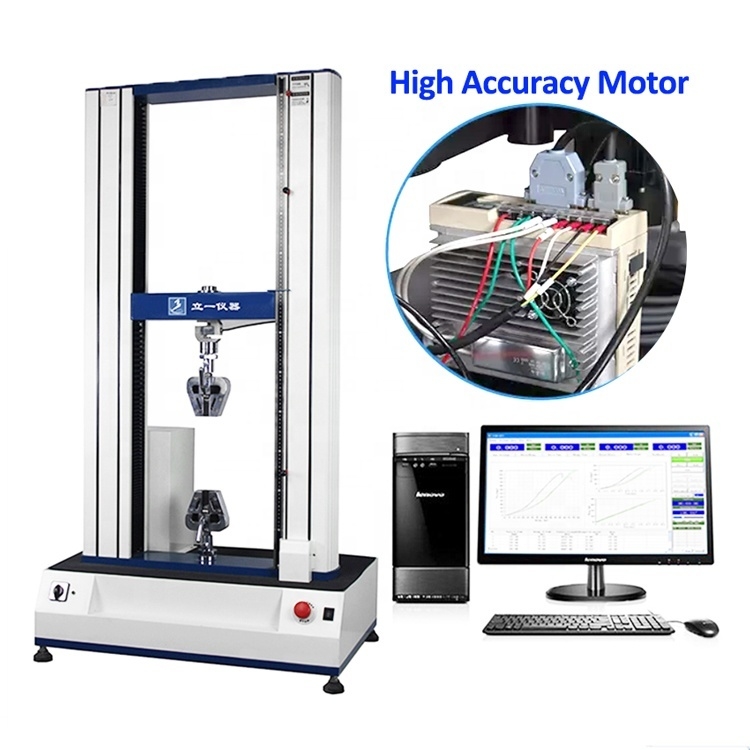

| Motor | Panasonic Servo Motor | AC Inverter Motor |
| Test Stroke (contain clamps) | 1200mm | |
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and a perfect after-sales service system.
Our company primarily produces simulated environmental testers, plastic and rubber testers, and other materials testing equipment for various industries. Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province to better serve customers in Eastern China.
Liyi serves customers from more than 150 countries and regions, collaborating with dealers worldwide to offer superior service. Our mission is to help customers establish testing labs to ensure product quality.
We continue to develop and innovate, combining international testing standards with specific customer requirements to establish new benchmarks in the Chinese testing industry.
